BUKH V8 / 350 - 500 HP

BUKH V8 / 350 - 500 HP
DIESEL PERFORMANCE

350 - 550 HP (257 - 404 KW)

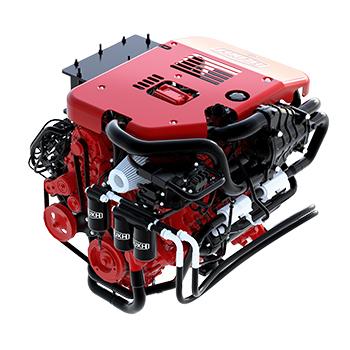

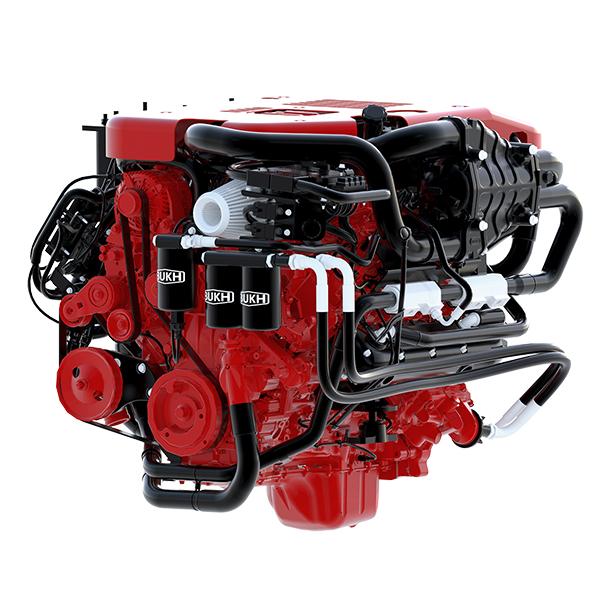

The BUKH V8 6.6L is a powerfull and compact light weight diesel engine that are designed to suit all commercial and leisure applications. With the strong Duramax base engine and Marinization done by BUKH in Denmark, the BUKH V8 is the right choise when reliability, performance, compact and quality is the keywords for your project.

FOLLOWING POWERRANGE IS AVALIABLE:
BUKH V8 - 300 HP (221 kW)
BUKH V8 - 350 HP (257 kW)
BUKH V8 - 400 HP (294 kW)
BUKH V8 - 450 HP (330 kW)
BUKH V8 - 500 HP (368 kW)
BUKH V8 - 550 HP (404 kW)

SEE BELOW DOWNLOAD FOR PRODUCT SPEC.
MARINE GEAR / JET ADAPTOR OPTIONS
Jet adaptor (Direct drive)
ZF 220
ZF280-1
TTM60A Gear
TTM60V V-drive
Sterndrive

TECHNICAL DESCRIPTION
Engine Mounting
Cast iron cylinder block - Induction hardned for increased durability
Nitride hardened steel crankshaft
One piece hot forged steel connection rods
Aluminum cylinder heads
4 valves per cylinder
Frontend gear train

Engine mounting
Flexible engine mounting

Lubrication System
Crankcase ventilation system
Oil filter relocator / remote filter bracket

Fuel System
External fuel filter for remote or on enigne install
Fuel cooler installed on engine
Bosch CP3 common rail system
Pilot injections to reduce combustion noice

Air inlet and exhaust system
Exhaust manifolds made of high quality cast aluminium
Wet exhaust elbow
Intake assembly with integrated stainless steel intercooler
Variable geometry turbo (VGT)

Cooling system
Freshwater-cooled charge air cooler
Seawater cooled heat exchanger
Coolant system prepared for hot water outlet
Easily accessible seawater pump front of engine
Steering oil cooler prepared on engine

Electrical System
12V alternator
24 V alternator (optional)
Dual alternator (optional)
Dual electric starter (Optional)
Glowplugs (Optional)
Extra alternator (Optional)

Instruments/controls
Engine date on 3,5" display
Laptop based diagnostics tool
J1939 and NMEA2000 can communication
Display IP 66 protection (front)

SPECIFIKATIONER
Engine duty rating Avaliable in: C3 - Medium Continuous Commercial_1 / C7 - Special Light Duty Commercial_2 / C10 - High Speed Craft Commercial_1
